The Tool Storage System that can manage all your tools.
Tiered CNC Tool Storage
Newly installed “Basic” Tool Wall still without tools
Tool Wall is the most compact tool storage system and all your tools are in full view.
If you want to do more than just storage, expand it by implementing our management
software. If you have a tool storage, download the “Tool Wall Data” software. It’s free.
CNC Tool Storage
CNC Tool Tracking
CNC Tool Management
TW Conversational CAM
CNC Job Management
Events
TW1-TW20 40 Taper
Use the Tool Wall to reduce your “Set-Up-Time” !
Tool Wall
is available for:
40 Taper
50 Taper
HSK 63
HSK 100
VDI ( coming soon )
Capto C6 ( coming soon )
We are currently in the process to expand
our system to include Turning Centers.
Tool Wall for “Common Tools”
is available now!
Canadian Manufacturing Show
October 19 - 22. 09
Toronto, Ontario
C M T S
IMTS 2010
See us at booth # W1164
September 13 - 18
Tool Wall Dual
Tool Wall Basic
Tool Wall Dual can be
differently configured.
1) Up to 320 ea. of the
same 40 taper tool
holder type.
2) 160 ea. of one type
40 taper and 160 ea.
of another type 40
taper tool holders.
3) 160 ea. of 40 taper
tool holders on one
side and 60 ea. of 50
taper tool holders on
the other side.
4) 120 ea. 50 taper
tool holders.
“Tool Wall Basic 40” is a 40 taper tiered
tool storage shelf. Tools are displayed in
front of you. No other storage system
stores so many tools on such a small
footprint. This system stores 160 - 40 taper
tools or 60 - 50 taper tools.
Don’t search for your tools - See
them !
The software is written for a touch
screen computer. No mouse no keyboard
to get dirty. This PC runs the tool- and
job management and connects to the
presetter and your CNC machines.

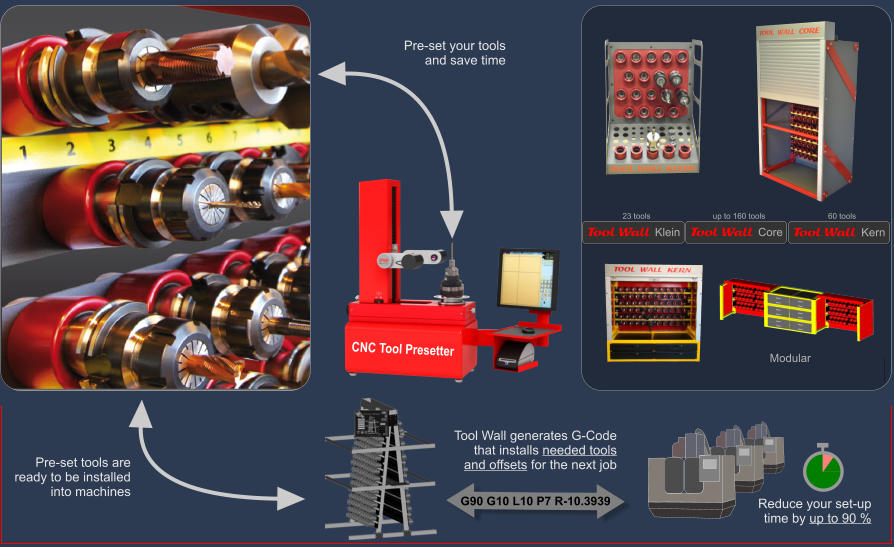

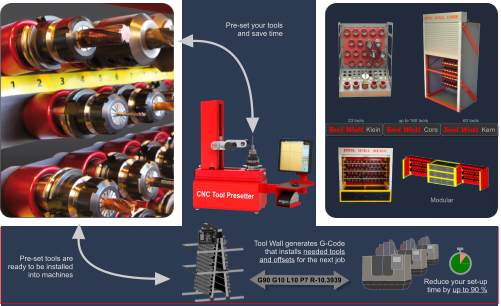

A tool presetter is a must for the Tool
Wall System. Our software integrates the
tool presetter and if connected via RS232
the measured values can be uploaded
automatically.
Go to the Presetter page for more
information.
No Tool Holder ?
If you prefer not to have a tool holder for every tool, you still can use Tool Wall
to organize and manage your tools. Insert our receptacle plug and secure it with
the “O-Ring”. Drill the center to match the tool and insert the tool bit.
This tool is now part of the system.
