A1 to A160 B1 to B160 D1 to D160 E1 to E160 F1 to F160 G1 to G160 H1 to H160 K1 to K160
Universal bar code
numbering available:
Label
A labelling system not only for Tool Wall but suitable for all users.
Our Universal
labelling system.

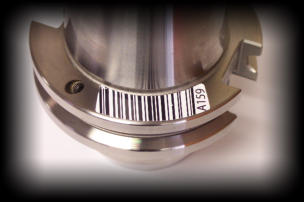

Label location hidden in
grove, away from chip
impact and below tool
changer gripper contact.
Our Tool Labels are cut
from a material that is very
durable for this environment
with a special adhesive and
specially coated after
printing.
(due to strong demand expect an eight week shipping delay)
(Labels ship in duplicate)

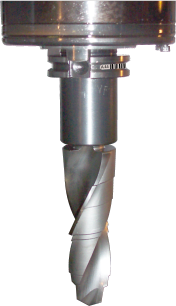

Bar Code
Label location
is facing away from
chip impact area.
Tool Labels
Tool Labels are
a simple solution.
Our Tool Labels are cut from a
material that is very durable for
this environment with a special
adhesive and specially coated
after printing.
The bar code matches the
database in the Tool Wall
software.
Adding a bar code scanner to
our Tool Wall system automates
many functions even further.
Note: Decals have different sizes. Please indicate holder type when ordering.
Note:
This label type is larger and is
designed to work with the Tool Wall
system which never stores or carries a
tool holder on the Tool Holder Flange.
Do not use this labels type if your
system impacts this area!
It will damage the label.
CNC Tool Storage and CNC Tool Management combined in one system.
For TW 50 taper:
A1 to A60
B1 to B60 D1 to D60 E1 to E60
For TW 40 taper:
A1 to A160 B1 to B160 D1 to D160 E1 to E160
Tool Wall bar code
numbering available:
3 mm - 0.118”
Check your holder as
some are narrower.
Wider is ok.
A Mini RFID option for tool number and offset recording is in the making, but not yet sold.
